Sunday, August 30, 2015

Erika post analysis

Erika is no more.  She was a strange little fighter.  I'm still going over all the data, trying to learn why she did what she did, and trying to find the clues I missed.

First can she bounce back?  I think that is highly unlikely. While Sea Surface Temperatures (SST) in the Gulf of Mexico (GOM) are very warm upper 80's, wind shear is high enough that it will rip anything that tries to form, into shreds.

Erika formed on Aug. 24, 2015, as it was almost immediately classified as a tropical storm. Erika maintained tropical storm status for just about her entire life cycle. It reached peak intensity with winds of 50 mph on multiple occasions. But it remained a fairly weak tropical storm.

While Danny had displaced a lot of the dry air in Erika's path, she still had to fight it.  Wind shear was also something that she had to deal with. Erika encountered quite a bit of wind shear from the start, which was one factor in precluding significant strengthening of the system. The wind shear pushed her convection (thunderstorms) on the eastern side of the storm. The wind shear was a constant issue with her structure. She just couldn't  find a balance between the cyclonic forces near the surface, with the anticyclonic forces in the upper levels. Without being able to handle air flow , she had issues with maintaining a moist environment.

Her structure issues became even more apparent.  As Her low level center was not aligned with her mid level center and upper level circulation.  She took the worst path a tropical cyclone can take.. Into the Caribbean and the rugged terrain of the island of Hispaniola, then moving over eastern Cuba.  She struggled for days with land interaction, wind shear and dry air.

When I make a tropical forecast, or any forecast really....I look at the current data, pattern, and setup, as well as model data. I also spend a lot of time looking at past patterns and setups....In hindsight, I might have placed too much emphases on past patterns and setups, when forecasting Erika.

I knew, She needed to stay north of Puerto Rico and Hispaniola. When I looked at the pattern and setup, The trough and ridge setup in the mid and upper levels supported this. There was a path that kept her north of the Islands and heading into Southern Florida. When I looked at the setup, I knew I had seen that before. I will touch on that later.

The main lesson I've learned from dealing with Erika. is to not discount the importance of low level flow.

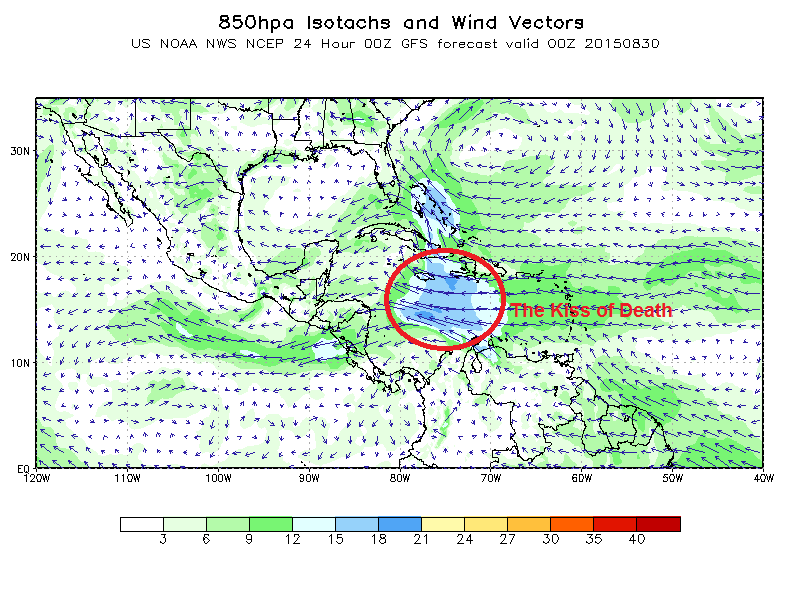

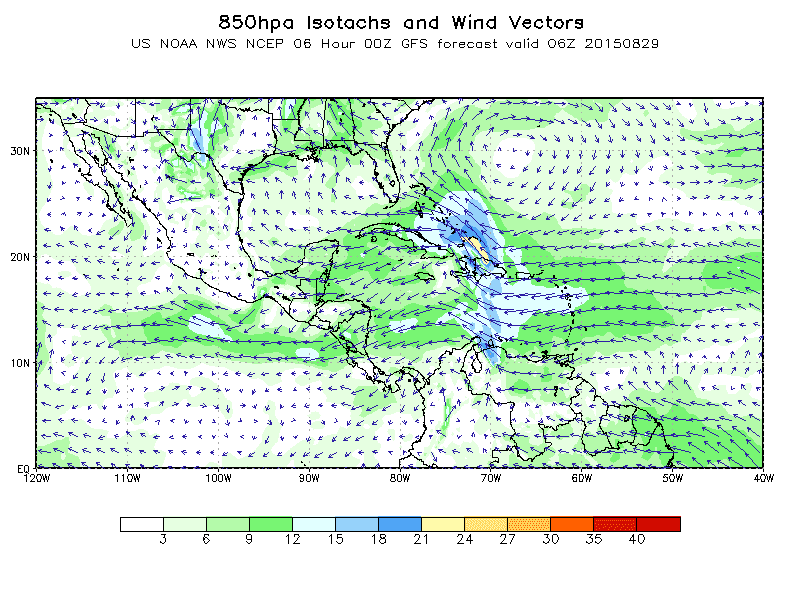

The low level easterly flow was the main reason for her demise..... Once her center shifted south of  Puerto Rico; she was on a path of no return. Not only did it place Hispaniola in her path; it also put her into the area of strong easterly wind shear. Here are a few 850 mb (5000 feet) level wind profiles.  The strong low level winds disrupted air flow, and prevented a lot of rising air (Convergence).  This area was a death sentence. As I stated before, it causes issues with retaining heat and moisture due to a lack of balance between cyclonic convergence near the surface and anticyclonic divergence aloft.

We also had an area over Cuba into the GOM, that was taking dry air forcing that into Erika's circulation flow. Once she jogged south those 20-30 miles, she moved into forces that were well beyond her ability to handle.

When Hurricane Hunters couldn't find a closed center of circulation. The National Hurricane Center declared Erika dissipated back to a tropical wave near the north coast of Cuba at 9:30 a.m. EDT, on August 29th.

About that past pattern I referred to.

I've plotted the path I thought she would take as well as plot the track she took from the 24th until she dissipated.
Here is how the pattern looked a couple of days ago.

I'm not sure , how many of you have heard of the 1935 Labor Day Hurricane.

This hurricane formed from a slow moving weak disturbance east of the Bahamas around the 27th/28th of August, 1935.  a couple of days later the U.S. Weather Bureau (forerunner of the National Weather Service (NWS)) issued an advisory about a very small but very strong tropical system, that was east of Long Island, Bahamas.  On September 1st the storm became a hurricane.  The hurricane reached a pressure of 892 mb on September 2nd.  To make matters worse the hurricane wasn't where the Weather Bureau thought it was. (No satellites back then).

Less than 24 hours before, the storm had winds of 75 mph. Those winds had nearly doubled by the morning of the 2nd, due to the very warm waters between the Bahamas and the Florida Keys.  The Labor Day hurricane make landfall later that night as a Category 5, with winds of around 200 mph. The storm killed hundreds.

Here is an old chart the shows the setup of on September 2nd 1935. If you compare it to a chart from a couple of days can see the setup and pattern looked eerily similar.  Both the Great Labor Day Hurricane and Erika were very small compact storms, and the SST's for the end of August into September, 1935 north of the Caribbean and East of the Bahamas. The same area that has very warm SST's this year.

Based on the track I thought Erika would take, and the almost similar pattern in 1935. I felt South Florida could be dealing with the type of Hurricane we haven't seen since Hurricane Andrew. Andrew was also a small hurricane with a similar setup.  Because of this, I felt it was important to state my fears and what could happen....while at the same time, trying not to sound to alarmist. ...not an easy task.

So while I don't think I hyped anything.....I should have paid a bit more attention to the 850/925 mb wind pattern. lesson learned.

Saturday, August 1, 2015

El Nino, PDO, and the AMO

The El Nino Southern Oscillation deals with the fluctuations in the  Sea Surface temperature (SST) in the equatorial Pacific. It has two phases, El Nino the warm positive phase, La Nina the cool negative phase.

The El Nino is getting impressive... I must admit... it is getting stronger than I said it would....You can't win them all.

We've had strong El Nino's before.  1972-1973, 1982-1983, 1997-1998. The strongest on record was the 1997 El Nino. Right now, our current El Nino looks to be just a bit weaker than 1997...but all the July readings aren't in yet.

In my Facebook weather group, I've fielded questions and discussed on the current El Nino.

During an El Nino, the southern jet stream comes farther north. This allows for a better chance for phasing the northern and southern Jet streams. Phasing is when a disturbance in the northern jet and a disturbance in the southern jet merges and becomes one very powerful storm.  When we have a very strong El Nino the southern Jet is even farther north. Last year we had a very positive (warm) Pacific Decadal Osculation  (PDO). The PDO promoted ridging over the western  Continuous United States ( CONUS) and troughing over the eastern CONUS. This allowed more cold air to come down out of Northwestern Canada and Alaska. With the ENSO bringing the southern jet closer to the northern jet. This is want happened during the winter of 2014-2015. We saw a lot of Nor'easters and major coastal storms.

1997 was a extremely warm winter in the Northeast. The reason was in part because of the strong El Nino. Here is a chart showing the SST. You can see the warmth in the tropical Pacific look very similar.

I've talked about on my Facebook weather pages....even though we have a very strong El Nino, many other conditions in the Pacific and Atlantic are completely different.

We have a strong (PDO) and a negative Atlantic Multidecadal Osculation (AMO).

The PDO was a little stronger a month ago... But since then, the PDO has seen some weakening on its northern edge. Also, the  SST's around Australia and into the Indian Ocean are starting warm up. This will aid the El Nino to get stronger. Six weeks ago the waters around Australia were cooler. The fact that these SST are warming ...will give this El Nino issues. During the 1997 El Nino the waters around Australia were cooler. With that said, I know I was saying this El Nino would be moderate to strong....but I was looks like this current El Nino will end up warmer than the El Nino of 1997.

El Nino and La Nina are short term cycles..... whereas the PDO and AMO are long term cycles.

Here are a couple of charts that show the cycles.



We're in a positive PDO and a negative AMO.... if you look at the top left (chart below) you will see how things are matching up to what we would expect from that pattern.


When we have a positive PDO, we tend to see more strong El Nino's, fewer hurricanes in the Atlantic, and a less active tornado season.


When we have a negative AMO, we tend to see strong LA Nina's, fewer hurricanes, and tendency for a positive North Atlantic Osculation (NAO) and positive Atlantic Osculation (AO).


Far too many meteorologist rely and trust only weather models. Models are great tools, but they are only part of what should be looked at. Looking at teleconnections, sea ice, solar activity, and other things are is very important as well. I based by Spring Summer outlook on all of these things.  Just as I use them when I make a winter outlook. If you've been following my post. Then how last winter turned out...and how this year is turning out....should be no surprise.

For the last few months I've been talking about the long range pattern; so far things are going as I outlined.  I've been saying we will see cooling as we move into August, and  things still seem to be trending that way. We will stay in this transient weather pattern well into August.  But as we head into the end of August and for September, we will see more in the way of long lasting warming.  The NCEP CFS V2  for August and September, show this to be the case.





As we head toward and get into the coming winter, the current teleconnection pattern of the PDO and AMO would indicate more in the way of cold..... So this year's El Nino shouldn't allow for the type of warm conditions we saw in 1997. The warm water near Australia would indicate on average higher pressure, with lower pressure on average in the tropical Pacific. This sort of setup would allow the warm water off the West Coast of South America to  move more to the west, as we get closer to this coming winter.
